Materiały
stal węglowa hartowana / ulepszana
Normy
- DIN: (*) 338
Uwagi
- (*) jest to norma zbliżona,
OPIS

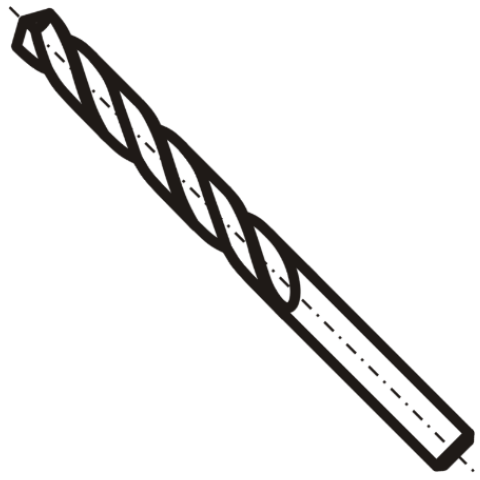

Wiertła do metalu NWKa - długość standardowa.
Średnica [mm] / długość [mm]
- 0.50 / 22,
- 0.60 / 24,
- 0.70 / 28,
- 0.80 / 30,
- 0.90 / 32,
- 1.00 / 34,
- 1.10 / 36,
- 1.20; 1.30 / 38,
- 1.40; 1.50 / 40,
- 1.60; 1.70 / 43,
- 1.80; 1.90 / 46,
- 2.00; 2.10 / 49,
- 2.20; 2.30 / 53,
- 2.40; 2.50; 2.60 / 57,
- 2.70; 2.80; 2.90; 3.00 / 61,
- 3.10; 3.20; 3.30; / 65,
- 3.40; 3.50; 3.60; 3.70 / 70,
- 3.80; 3.90; 4.00; 4.10; 4.20 / 75,
- 4.30; 4.40; 4.50; 4.60; 4.70 / 80,
- 4.80; 4.90; 5.10; 5.20; 5.30 / 86,
- 5.40; 5.50; 5.60; 5.70; 5.80; 5.90; 6.00 / 93,
- 6.10; 6.20; 6.30; 6.40; 6.50; 6.60; 6.70 / 101,
- 6.80; 6.90; 7.00; 7.10; 7.20; 7.30 / 109,
- 7.40; 7.50 / 109,
- 7.60; 7.70; 7.80; 7.90; 8.00; 8.10; 8.20 / 117,
- 8.30; 8.40; 8.50 / 117,
- 8.60; 8.70; 8.80; 8.90; 9.0,
- 9.10; 9.20 / 125,
- 9.30; 9.40; 9.50 / 125,
- 9.60; 9.70; 9.80; 9.90; 10.00; 10.10 / 133,
- 10.20; 10.30; 10.40; 10.50; 10.60 / 133,
- 10.70; 10.80; 10.90; 11.00; 11.10 / 142,
- 11.20; 11.30; 11.40; 11.50; 11.60/ 142,
- 11.70; 11.80 / 142,
- 11.90; 12.00; 12.10; 12.20; 12.30 / 152,
- 12.40; 12.50; 12.60; 12.70; 12.80 / 152,
- 13.50; 14.00; 14.50; 15.00 / 169,
- 15.50; 16.00 / 178,
- 16.50; 17.00 / 184,
- 17.50; 18.00 / 191,
- 18.50; 19.00 / 198,
- 19.50; 20.00 / 205.
| średnica[mm] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.8 | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | 2.5 | 2.6 | 2.7 | 2.8 | 2.9 | 3.0 | 3 | 3.1 | 3.2 | 3.3 | 3.4 | 3.5 | 3.6 | 3.7 | 3.8 | 3.9 | 4 | 4.1 | 4.2 | 4.3 | 4.4 | 4.5 | 4.6 | 4.7 | 4.8 | 4.9 | 5.0 | 5 | 5.1 | 5.2 | 5.3 | 5.4 | 5.5 | 5.6 | 5.7 | 5.8 | 5.9 | 6.0 | 6 | 6.1 | 6.2 | 6.3 | 6.4 | 6.5 | 6.6 | 6.7 | 6.8 | 6.9 | 7.0 | 7 | 7.1 | 7.2 | 7.3 | 7.4 | 7.5 | 7.6 | 7.7 | 7.8 | 7.9 | 8 | 8.1 | 8.2 | 8.3 | 8.4 | 8.5 | 8.6 | 8.7 | 8.9 | 9 | 9.1 | 9.2 | 9.3 | 9.4 | 9.5 | 9.6 | 9.8 | 9.9 | 10.0 | 10 | 10.1 | 10.2 | 10.3 | 10.4 | 10.5 | 10.6 | 10.7 | 10.8 | 10.9 | 11 | 11.1 | 11.2 | 11.3 | 11.4 | 11.5 | 11.6 | 11.7 | 11.8 | 11.9 | 12 | 12.1 | 12.2 | 12.3 | 12.4 | 12.5 | 12.6 | 12.7 | 12.8 | 12.9 | 13 | 14 | 14.5 | 15 | 15.5 | 16 | 16.5 | 17 | 17.5 | 18 | 18.5 | 19 | 19.5 | 20 | |
